HATEOAS Console: the beginning

Posted in programming by bnathyuw on 18 September 2011

At 7digital we have 2 days’ innovation time every month. During this time we can work on our own pet projects. This post is about my current project.

You can find the source of this project at https://github.com/bnathyuw/Hateoas-Console

Introduction

RESTful web architecture is becoming increasingly influential in the design of both web services and web sites, but it is still very easy to produce half-hearted implementations of it, and the tools that exist don’t always help.

In this project, I want to address this problem by building a new REST console that will:

  • Reward good implementations by making it easy to take advantage of all their RESTful features;
  • Help improve less good implementations by exposing their shortcomings.

Basic principles of a RESTful interface

Richardson and Ruby (2007 pp. 79 ff.) present a good analysis of RESTful interface design. Drawing on Fielding (2000 s. 5), but with a focus on actual practice, they identify four key principles or Resource-Oriented Architecture:

  1. Addressability;
  2. Statelessness;
  3. Connectedness;
  4. Uniform Interface.

Addressability means that any resource in the application that a consumer could want to know about has at least one URI. This criterion is fairly coextensive with Fielding’s Identification of Resources requirement.

Statelessness means that every request should contain all the information needed for its processing. This overlaps with Fielding’s requirement that messages be self-descriptive, and that hypermedia be the representation of application state.

Connectedness means that each resource representation should give addresses of all related resources. The most effective way to ensure connectedness will often be to produce an entry-point resource, from which it is possible to navigate to all other resources. This furnishes the other part of Fielding’s requirement for hypermedia as the engine of application state.

Uniform Interface means that all resources can be manipulated in the same way. For web services, this almost invariably means using the HTTP verbs, viz DELETE, HEAD, GET, OPTIONS, POST, PUT &c. This principle supports Fielding’s self-description criterion, and specifies the means of manipulation of resources.

Most REST consoles are fairly successful in accommodating principles 1, 2 and 4, but fail significantly in accommodating principle 3. Under Fielding’s terminology, existing REST consoles give little support for hypermedia as the engine of application state (HATEOAS).

Existing REST consoles

There exist several good consoles for manually consuming RESTful services. These include:

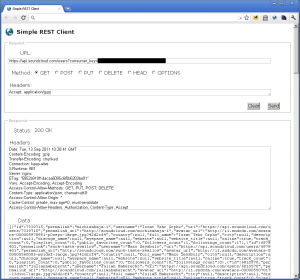

Screenshot: Simple REST Client for Chrome
Simple REST Client for Chrome

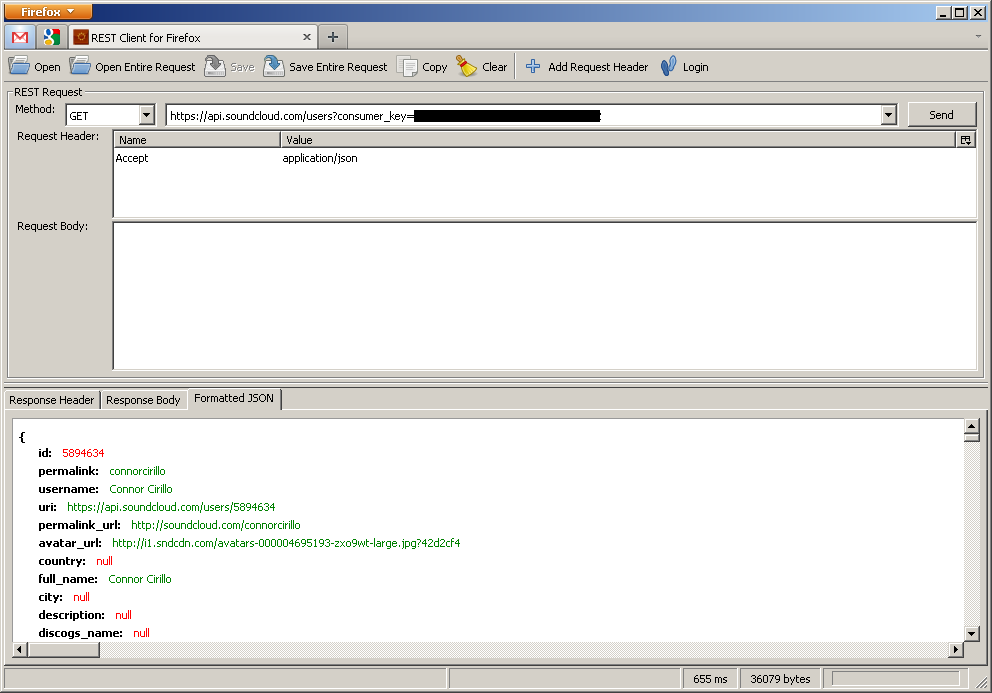

Screen shot of REST Client for Firefox
REST Client for Firefox

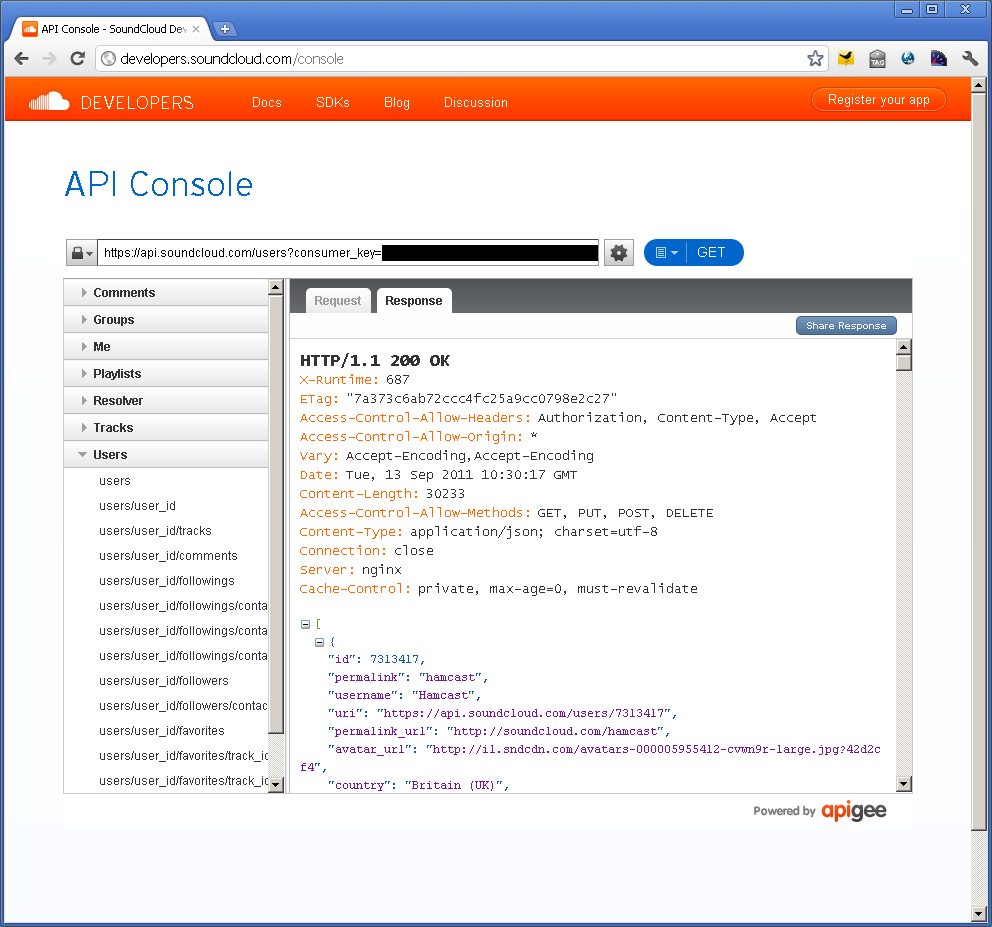

Screenshot: apigee

apigee

All of these clients work on a similar model: you enter a URI in the address box, choose an HTTP verb and click a button to send the request. You also have the option of adding headers and a request body. The headers and content of the response are then displayed on screen for the user to inspect.

How these consoles support the REST principles

Addressability

Addressability is a core notion in these consoles: the address box is a primary part of the UI, and you have to enter something here in order to make a request.

Statelessness

Statelessness is perhaps the easiest of the four principles to achieve, as the consoles operate on a request-response model.

In fact, what is useful in a console is the very opposite of statelessness: the console should be able to remember your preferences so that you do not have to enter them for each request.

With a significant exception discussed below, all three consoles do a fair job of remembering your choice of headers from one request to another, which takes some of the burden off the user. Apigee and REST Client for Firefox are also able handle OAuth authentication, which is a nice feature.

Connectedness

None of the consoles deals successfully with connectedness. If you want to follow a link from the response, you have to copy the resource URI into the address box and submit another request.

Apigee differs from the other two consoles in having a side panel which lists the principle URI schemata for the service under test. This initially seems like a helpful feature, but has several unfortunate consequences:

  • Apigee uses WADL to create its directory of links. This encourages a return to the RPC-stle of service architecture, which thinks of a web service as being made up of a limited set of discrete endpoints, each with a particular purpose, rather than an unlimited network of interconnected resources which can be manipulated through a uniform interface.
  • As the endpoints are listed in the directory panel, it is less obvious when a resource does not contain links to related resources.
  • Apigee has no way of filling in variable parts of a URI. If, for instance, you click me/favourites/track_id (PUT), it enters https://api.soundcloud.com/me/favorites/{track_id}.json in the address box. You then have to replace {track_id} with the specific track ID you are interested in. This is of course no help if you don’t know which track you want to add to your favourites!
  • Each endpoint is listed with a .json suffix, no matter what format you have just requested. Also, any request headers you have filled in are forgotten when you click on a new endpoint.

These shortcomings not only make the console frustrating to use, but also encourage non-connected, RPC-style architectural decisions.

Uniform Interface

As with Addressability, the Uniform Interface is at the core of these consoles. The HTTP verb selector is prominent in each UI, and it is easy to switch from one to another.

Apigee supports GET, POST, DELETE and PUT, Simple REST Client for Chrome adds support for HEAD and OPTIONS, and REST Client for Firefox adds support for TRACE, as well as several more obscure verbs.

What none of these consoles does is make any attempt to figure out what representation of a resource should be submitted in a POST or PUT request body. This is particularly surprising in Apigee, as this information should be available in the API WADL document.

Conclusion

There are close points of comparison between a REST console and a web browser: each is designed to make requests from a particular URI using one of a small number of HTTP verbs, and then display a representation of that resource to the user. What makes a web browser so powerful — and indeed was one of the founding principles of the internet — is that the user can click on links to get from one page to another. When you the primacy of the clickable link to the success of browsers it becomes all the more puzzling that REST consoles do not implement this functionality.

The Project

Basic principles

The purpose of this project is to attempt to address some of the shortcomings of the currently available REST consoles, while retaining their good features:

  • The basic format of the existing consoles is successful: an address box, and verb chooser, and a send button;
  • Rendering all details of the response is also vital; REST Client for Firefox gives you choice of viewing raw and rendered data, which is a nice additional feature;
  • The client should support as wide as possible a range of HTTP verbs, encompassing at least GET, POST, PUT, DELETE, OPTIONS, HEAD;
  • The ability to remember headers is very useful and should be kept, especially when clicking on a link;
  • OAuth integration is a nice feature and worth implementing if possible;
  • It would be very useful for the console to make a reasonable attempt at figuring out the response body format for PUT and POST requests;
  • Reliance on a WADL document encourages unRESTful thinking and should be avoided.
  • All appropriate links in the response body should be identified, and it should be simple to make further requests and to explore the API by clicking on them.

Implementation decisions

I decided to implement this project in HTML and JavaScript, as this seemed the most portable platform. I am working on the assumption that the finished product will be a chrome extension, as this lets me make some simplifying assumptions about the capabilities of the browser environment, and may also help solve some security issues.
